Sri Padmavathi Cables is Short coaxial cables are used in the home and small offices for cable television, home video equipment, amateur radio equipment, and measuring instruments. Automobiles, aircraft, military, and medical equipment, as well as satellite dishes, all require coaxial wires.
The coaxial cables are used in Ethernet LANs and also used in MANs, Television, Internet, CCTV, Video and HDTV.
Where can you use Sri Padmavathi Cables' range of Co-Axial Cables?
Polymer Layer - A polymer layer with a plastic covering outwardly.
Inside - It's used to protect inside layers from hurt.
Transmission capacity - High-transfer speed high-thickness Sri Padmavathi coaxial links are accessible.
Establishment - These Coaxial Cables are incredibly simple to introduce.
Opposition - Coaxial links offer a higher slice through obstruction, making them more reliable and dependable.
No impedance - Noise, cross-talk, and electromagnetic deduction have less of an effect.
Different Channels - Multiple channels are upheld with coaxial associations.
Padmavathi Cables is one of the best Co-Axial Cables manufacturer, Co-Axial Cables exporter, Co-Axial Cables supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this Co-Axial Cables in all over countries. If you want this products please quote Now!
Standards: Mil-C-17, BS 2316

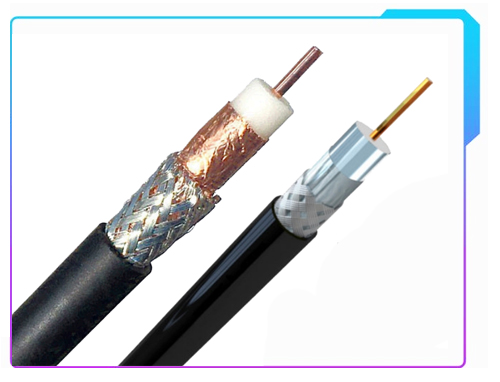

Solid Copper Center Conductor DIE Electric of Solid PE or Foam PE. Aluminum foil Shielded, Bare Copper or tinned Copper Braiding 95% Coverage. Overall Sheath mainly used for Transmission R.F. Signal the Co-axial Cables are not only the most used Cables but the Least Expensive one in the Market.
This Cables are very Reliable, Convenient and have easily Maintained Way of Transferring Images in a CCTV System. Co-axial Cables is used as a Transmission Line for Digital Video Signal, in Applications Such as Connecting Radio Transmitters and Receivers with their Antennas, Computer Network (Internet Connections) and Distributing Cable Television Signals.
| Cable Type | Conductor Size (mm) | DIA Over Dielectric (mm) | Approx Overall DIA (mm) | Impedance (Ohms) | Attenuation at 200mhz (DB/100m) | Max. R.F. Operating Voltage (kv) | Capacitance PF/FT |
| RG-59 B/U | 0.58 | 3.7 | 6.1 | 75 | 16 | 2.3 RMS | 21.1 |
| RG-59/U | 0.63 | 3.7 | 6.2 | 73 | 16 | 2.3 RMS | 20.6 |
| RG-6/U | 1.04 | 4.6 | 7 | 75 | 9 | 2.7 RMS | 20 |
| RG-11 | 1.61 | 7.1 | 10.3 | 75 | 6 | 5.0 RMS | 20.6 |
| RG-11 A/U | 7/0.41 | 7.25 | 10.3 | 75 | 11 | 5.0 RMS | 20.6 |
| RG-174 U | 7/0.16 | 1.5 | 2.5 | 50 | 40 | 1.5 RMS | 30.5 |
| RG-58/U | 0.81 | 2.95 | 5 | 53.5 | 23 | 1.9 RMS | 28.8 |
| RG-58 C/U | 19/0. 18 | 2.95 | 5 | 50 | 24 | 1.9 RMS | 29.6 |
| RG-223/U (RG-55 A/U) | 0.06 | 2.95 | 5.5 | 50 | 20 | 1.9 RMS | 19.8 |
| RG-213/U (RG-8 A/U) | 7/0.75 | 7.25 | 10.3 | 50 | 11 | 5.0 RMS | 30.8 |
| RG-214/U (RG-9B/U) | 7/0.75 | 7.25 | 10.8 | 50 | 11 | 5.0 RMS | 30.8 |
