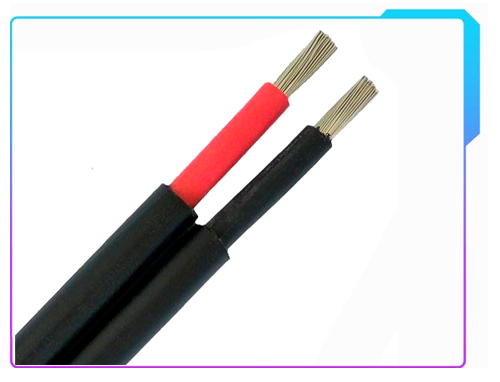

Photovoltaic Solar Cables

Such cables can be used both indoors and outdoors for both, flexible as well as fixed systems that require strong mechanical strength in harsh climates. Any permanent, mobile, roof, or architecturally integrated solar installation requires cables that can resist the harsh climatic conditions.

These high density Photovoltaic Solar Cables were created by Sri Padmavathi Cables with photovoltaic applications in mind. They provide the best possible cable connectivity amongst the solar cells and between the solar cells and the inverter or DC main cable. These cables are a perfect fit for outdoor ground and roof-mounted systems, but not for direct earth-laying. These cables are also suitable for indoors and fixed pipe installations.

They are safe in the event of a fire because of their halogen-free, flame-retardant, and low-smoke properties.

Sri Padmavathi Cables – Photovoltaic Solar Cables are constructed with Flexible Annealed Tinned Copper Class-5 IS 8130/2013 conductor and Extruded Halogen Free- Cross-linked Compound insulation. The sheath is made up of Extruded Halogen Free- Cross Linked Compound/ UV Resistant- ST2 Type PVC and the Conductor Temperature Rating Ambient is - 40 to + 90°C.

Padmavathi Cables is one of the best Photovoltaic Solar Cables manufacturer, Photovoltaic Solar Cables exporter, Photovoltaic Solar Cables supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this Photovoltaic Solar Cables in all over countries. If you want this products please quote Now !

Application:

These Cables are Especially Designed for use in Photovoltaic Applications. They Provide the Optimal Cable Connection between the Solar Cells and from the Solar Cells to the Inverter or DC Main Cable.

These Cables are Suitable for outdoor Ground and Roof Mounted Systems – Though not Suitable for Direct Laying Under the Earth. They are also Suitable Laying Indoors and in Fixed Pipe Installation.

Thanks to its Halogen free, Flame Retardant and Low Smoke Properties, These Cables are also Safe to Care the Health of Inhabitants in Case of Fire.

No. of Cores & Nom. Cross Section Area (sq mm)	Overall DIA Nom. in (mm)	Current Carring Capacity (Amp)	Approx. Weight ( kg/km)	MV/AM
1 X 2.5	4.5	41	39	19
1 X 4.0	5.2	55	57	12
1 X 6.0	5.9	70	79	7.9
1 X 10.0	6.9	98	122	4.7
1 X 16.0	8.3	132	181	2.9
1 X 25.0	9.7	176	273	1.85
1 X 35.0	11	218	364	1.35
1 X 50.0	13.2	276	520	1
1 X 70	15.4	347	713	0.73
1 X 95	17.4	416	930	0.56
1 X 120	20.1	488	1191	0.47
1 X 150	232.5	566	1514	0.41
1 X 185	26	644	1828	0.36
1 X 240	26.8	775	2324	0.31
