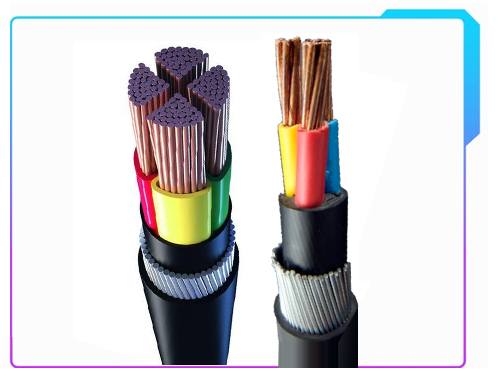

LT Power Cable

The density and the quality of material used while building cables at "Sri Padmavathi Cables" are impeccable and which is why they assure the longevity & dependability needed. We are one of the standard and high quality manufacturer, dealer and supplier for LT power Cable.

Sri Padmavathi Cables' range of LT Power Cables are as per International Standards:

IS 1554 Part-1, 1988, IS 7098 Part-1, 1988, IEC 60502 & BS 5467

Grade of Voltage: 1100V

Range of LT Power Cables by Sri Padmavathi Cables:
Single Core - A single core with a surface area of up to 1000 sq mm
Multi-Core: The Multi-Core LT Power Cables goes up to 630 square millimetres

What are the Cable Codes?

Y: PVC,
W: Steel Wire Round Armoured,
F : Flat Steel Strip Armoured
WW : Steel double Round Wire Armoured
FF : Steel Double Flat Strip Armoured
Y : PVC For Outer Sheathe
CE : Individual Core Screening

Sri Padmavathi Cables is one of the best LT Power Cable manufacturer, LT Power Cable exporter, LT Power Cable supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this LT Power Cable in all over countries. If you want this products please quote Now !

Technical Parameters: Number of cores: Single Core to 4 Core

Cross Section Area: Single Core Cables : 4 to 1000 sq mm as Per Specs.

Multi Core: 4 to 630 sq mm as Per Specs.

Type of Conductor: Copper

Class: 1 & 2 IS : 8130

Insulation: PVC/HR PVC/ XLPE IS: 5831, IS 7098 (P-1)

Inner Sheath: PVC Tape Wrapped /Extruded PVC. ( ST-1/ ST-2 )

Type of Armouring

Multi Core Cables: Galvanized Steel Round Wire/Flat Strip

Single Core Cables: Non-Magnetic, Aluminum Round Wire/Flat Strip

Outer Sheath: Extruded PVC /FR /FRLS/ LSZH.( ST-1/ST -2)

Application: Thermal Power Stations, Power Distribution Systems Steel Plants, Cement Plants, Oil Refineries, Hotels, Hospitals, Commercial Buildings

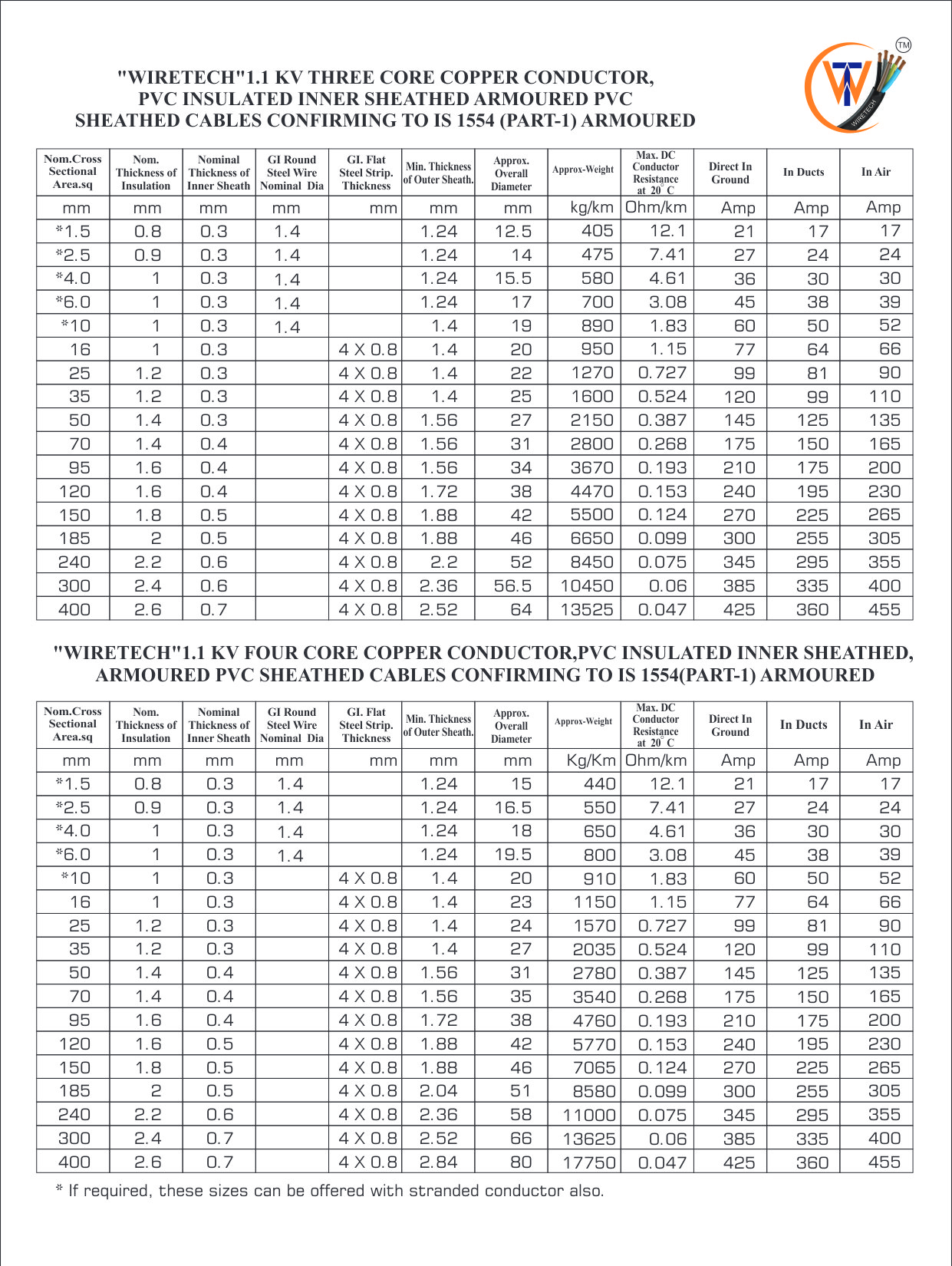

View Chart
