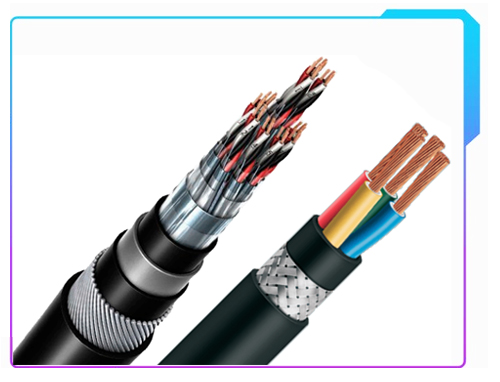

Instrumentation Cables

An Instrumentation Cables is designed with multiple conductors which are used to transmit low-energy electric signals. The three main objectives of an instrumentation cable are to measure, administer and to control the electrical system and its various auxiliary processes. These Instrumental Cables send out low-energy signals that enable directing or tracking of high-stakes electronic circuit-dependent functions. Due to this, Instrumentation Cables play an extremely crucial role in processing and manufacturing projects such as engineering industries and power distribution plants. Because they are impervious to external interruptions and interference, these high-density instrumentation cables are useful in a variety of control and communication applications.

Following is the Sri Padmavathi Cables range of Instrumentation Cables:

1. YSWY: Copper/PVC/Overall Screened/ Galvanized Steel Round Wire/PVC
2. YSFY: Copper/PVC/Overall Screened Galvanized Steel Flat Strip/PVC
3. YSSWY: Copper/PVC/Individual & Overall Screened/Galvanized Steel Round Wire/PVC
4. YSSFY: Copper/PVC/Individual & Overall Screened/ Galvanized Steel Flat Strip/PVC

These cables are available as per their construction i.e. Construction: Cores /Pairs/ Triads/ Quads. These Core/Pair/Triad/ Quad are assembled in concentric or unit Formation with suitable Lay Length. We, at Sri Padmavathi Cables ensure careful and thorough efforts in sustaining standards and strictly enforced process control during development and manufacturing.

Padmavathi Cables is one of the best Instrumentation Cables manufacturer, Instrumentation Cables exporter, Instrumentation Cables supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this Instrumentation Cables in all over countries. If you want this products please quote Now !

Conductor: Annealed Plain/Tinned Electrolytic Grade Solid/ Stranded / Flexible

Copper Conductor: Class - 1, 2 or 5 as Per BS EN 60228, IS 8130

Insulation: PVC/HR PVC/ XLPE/PE/ as Per IS: 5831, IS 7098 ( P-1)

Identification: Core-Coloured Insulation or by Number Printing/Number Tape Pair/Triad/Quad-Colour Insulation Number Printing or Numbered Polyester Tape.

Twisting: Insulated Cores Shall be twisted to form a Pair/ Triad/ Quad with Different Lay to Minimize the Cross Talk. Screening/Shielding: Individual or Overall Screen with a Combination of Polyester Tape and Aluminum Mylar Tape with ATC Drain Wire 100% Coverage & 25% Overlap

Laying: Core/Pair/Triad/ Quad are Assembled in Concentric or unit Formation With Suitable Lay Length.

Inner Sheath: PVC ST1/ST2 with or without FR/FRLSH/LSZH. IS: 5831, BS EN 50290 -2-22 & 27

Rip Cord: Rip Cord is Provided as per Customer Requirements for easy Removal of Sheath.

Armouring: Galvanized Steel Wire/Flat Strip or SS Wire Braiding IS: 3975

Outer Sheath: PVC ST1/ST2 with or without FR/FRLSH/LSZH. IS: 5831

Temperature Rating: 70C Max Conductor Operating Temperature

Application: Petrochemical. Oil & Gas, Cement, Power Plants, Pharma, Aviation, Shipping, Steel, Telecom, Industrial & Building Automation.

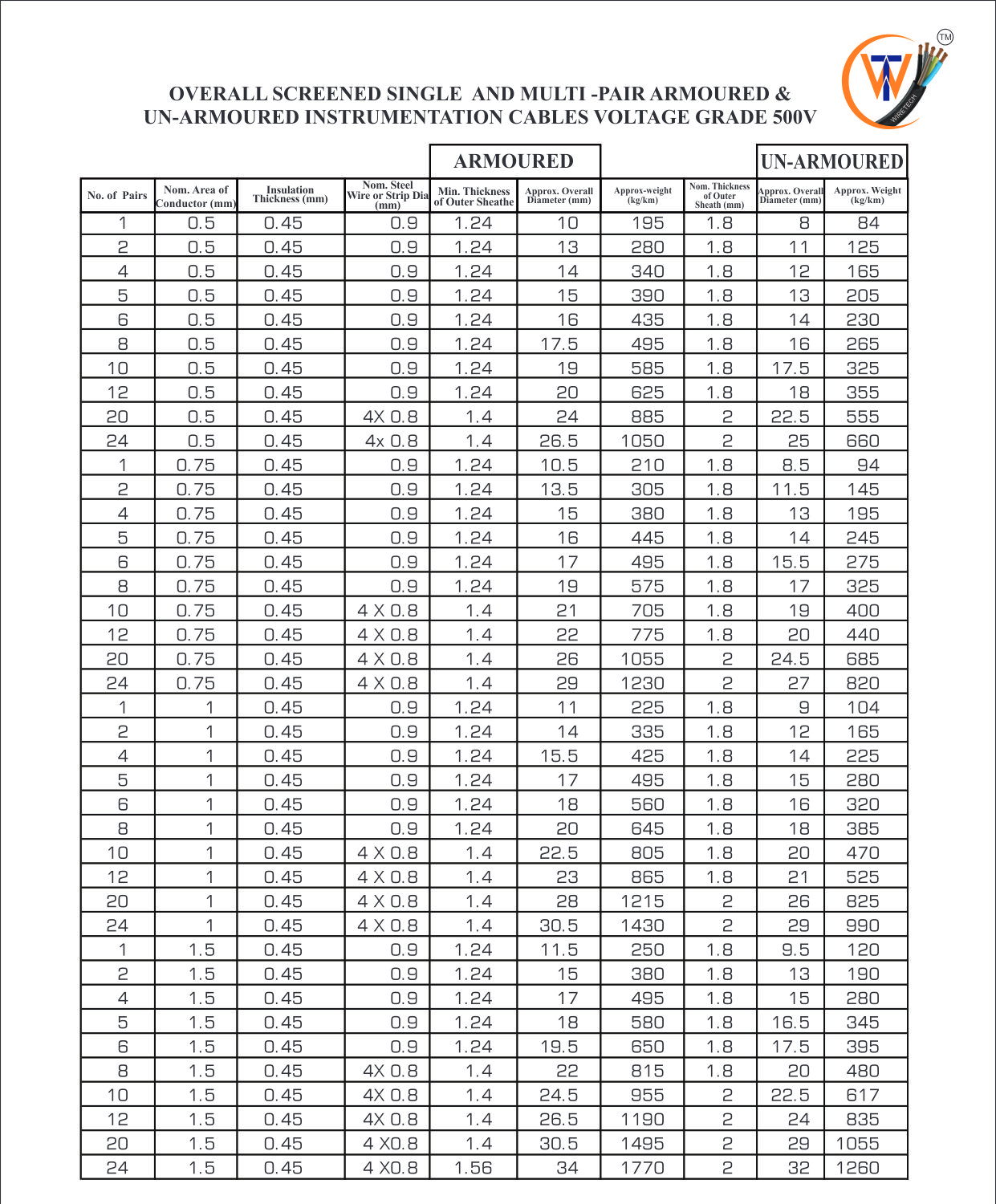

OVERALL SCREENED SINGLE AND MULTI-PAIR ARMOURED & UN-ARMOURED INSTRUMENTATION CABLES VOLTAGE GRADE 500V: View Chart

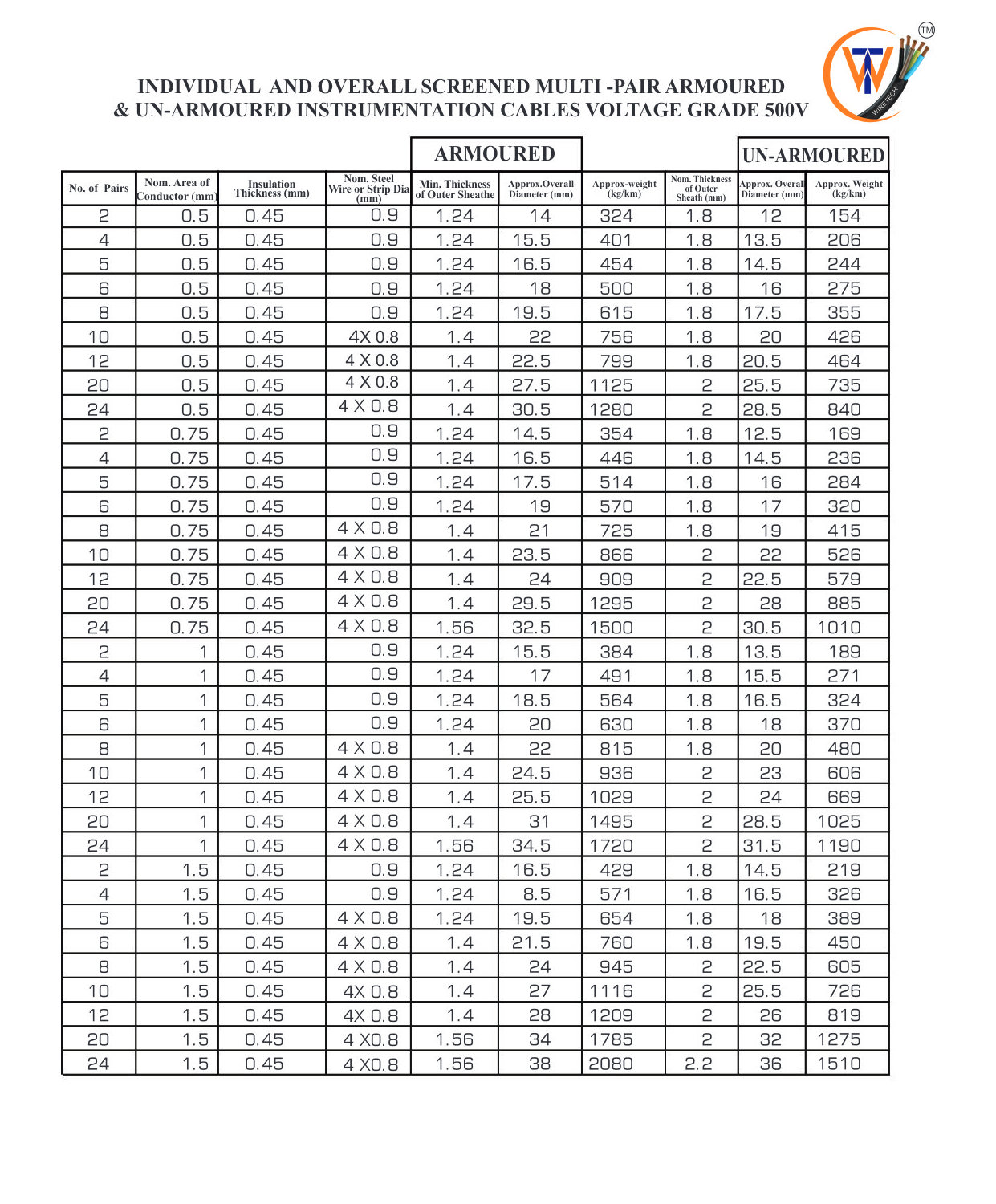

INDIVIDUAL AND OVERALL SCREENED MULTI-PAIR ARMOURED & UN-ARMOURED INSTRUMENTATION CABLES VOLTAGE GRADE 500V: View Chart
